Custom 3D printer build – designed and assembled a fully functional printer, calibrated for stability and accuracy.

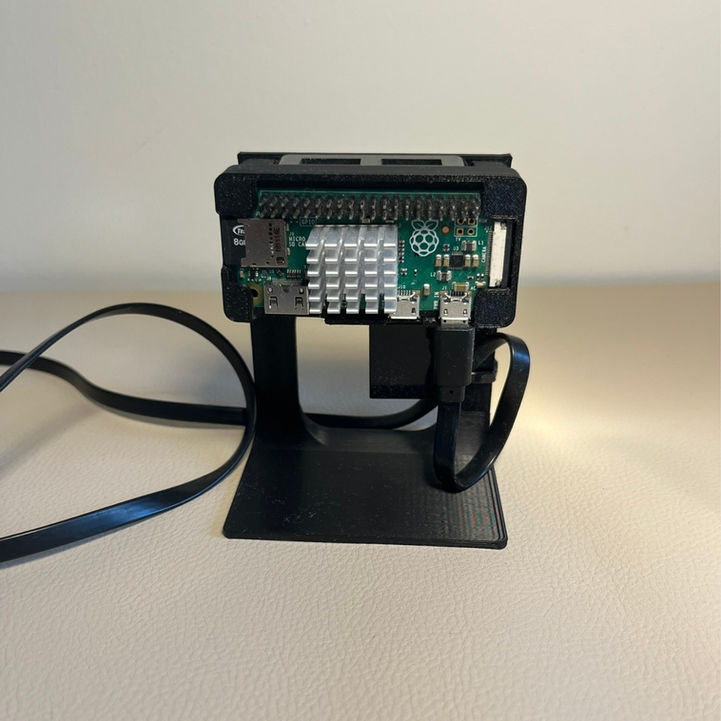

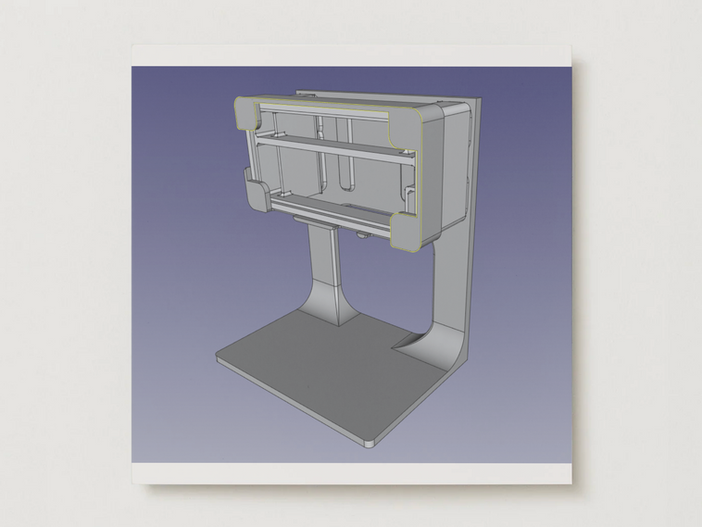

Functional prototypes – custom brackets, enclosures, and replacement parts for real-world use.
Technical models – robotics components and housings designed for industrial settings.

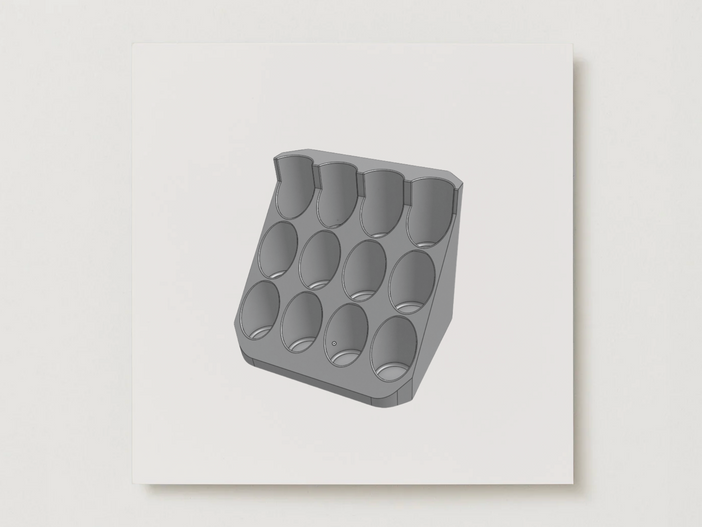

Everyday tools – simple but practical designs, from cable organizers to workshop accessories.
Custom-Built 3D printer
Custom-Built 3D Printer
I built a custom 3D printer from the ground up, designed for stability and precision.
-
Frame: constructed from 30×30 aluminum extrusion profiles for rigidity.
-
Motion system: X and Y axes run on MGN12 linear rails, while the Z axis is supported by an MGN15 rail/linear unit.
-
Controller: Duet2 WiFi board with advanced motion control.
-
Homing: sensorless homing on X and Y axes, with an inductive sensor on the Z axis that also functions as a probe.
-
Build volume: effective print area of 300 × 300 × 375 mm.
This project allowed me to gain in-depth knowledge of mechanical design, firmware configuration, and precision calibration, resulting in a reliable large-format printer tailored to my needs.
